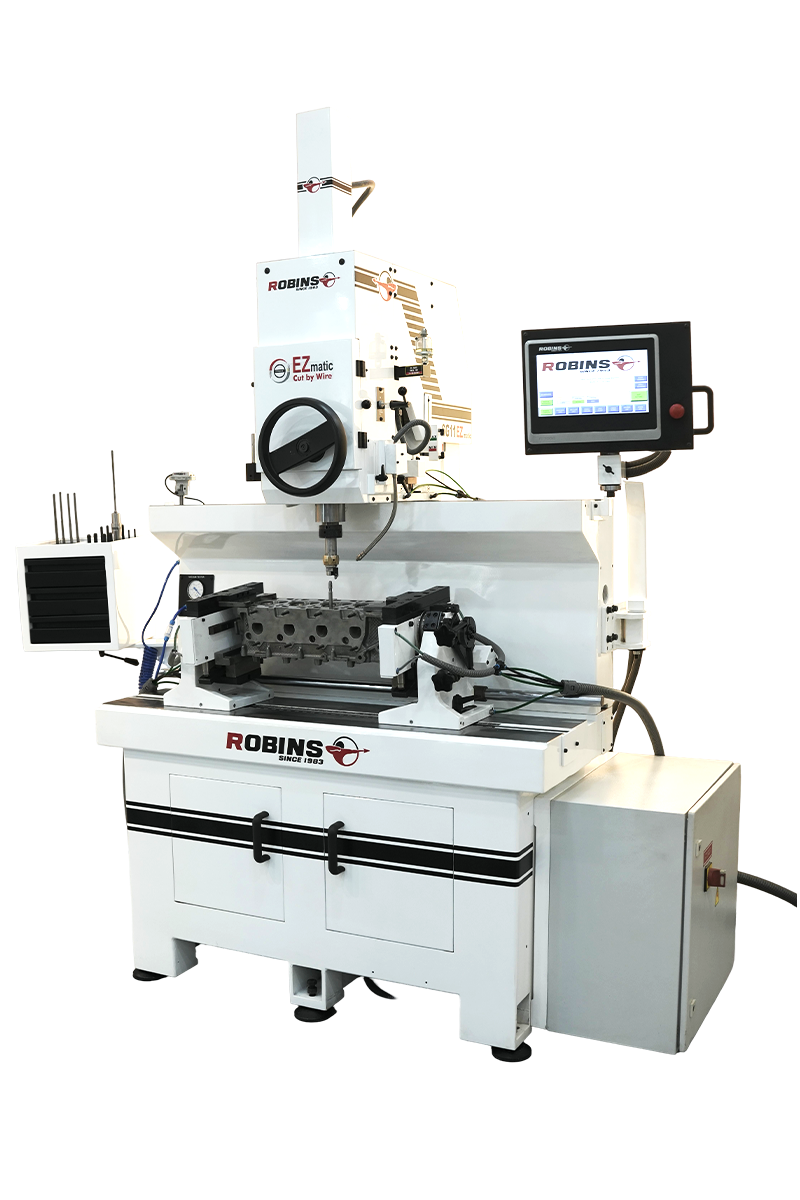

The Robins SGH 11 EZmatic is an automatic seat and guide machine designed for accurate and repeatable valve-seat machining on small to medium diesel, automotive, and powersports cylinder heads. It combines manual setup with CNC “Cut-by-Wire” automatic seat cutting, allowing operators to achieve consistent seat geometry with minimal input.
A dual-centering system and fixed/live pilot capability ensure stable alignment and near-zero seat runout. When paired with the Robins Guide Honing Kit, the EZmatic delivers precise guide geometry before cutting, maximizing concentricity and seat accuracy. Operation is simple: lower the pilot, press Auto Cycle, and the machine completes the cut automatically.
Compatible with Robins Gold-Series tooling for calibrated multi-angle seat profiles, the SGH 11 EZmatic provides fast cycle times, dependable accuracy, and consistent results for performance shops, diesel rebuilders, and production environments.
| Max Cylinder Head Size (in roll fixture) | 40 x 12 x 6 in (1016 x 304 x 152 mm) |
| Spindle Speed | 10 – 570 RPM |
| Spindle Stroke | 8 in (213 mm) |
| Spindle Tilt | ± 15 degrees |
| Electrical Supply | 220 V / 50–60 Hz / 1 Phase |
| Constant Varying Speed | Yes |
| Micro Fine Feed | Yes |
| Spring Free Tooling | Yes |
| Threading/Tapping Feature | Yes |
| Net Weight (Approx.) | 2315 lbs (1050 kg) |
| Shipping Weight (Approx.) | 2977 lbs (1350 kg) |
| Compare Model Specs |
Current Model
|
Comparison Model
|
|---|---|---|
| FEATURES |
SGH 11 EZmatic
|
|
| Max Cylinder Head Size (in roll fixture) | 40 x 12 x 6 in (1016 x 304 x 152 mm) | 10 x 10 x 6 in (254 x 254 x 152 mm) |
| Spindle Speed | 10 – 570 RPM | 70 – 570 RPM |
| Spindle Stroke | 8 in (213 mm) | 5.75 in (146 mm) |
| Spindle Tilt | ± 15 degrees | ± 10 degrees |
| Electrical Supply | 220 V / 50–60 Hz / 1 Phase | 220 V / 50–60 Hz / 1 Phase |
| Constant Varying Speed | Yes | Yes |
| Micro Fine Feed | Yes | No |
| Spring Free Tooling | Yes | Yes |
| Threading/Tapping Feature | Yes | Yes |
| Net Weight (Approx.) | 2315 lbs (1050 kg) | 882 lbs (400 kg) |
| Shipping Weight (Approx.) | 2977 lbs (1350 kg) | 1103 lbs (500 kg) |
