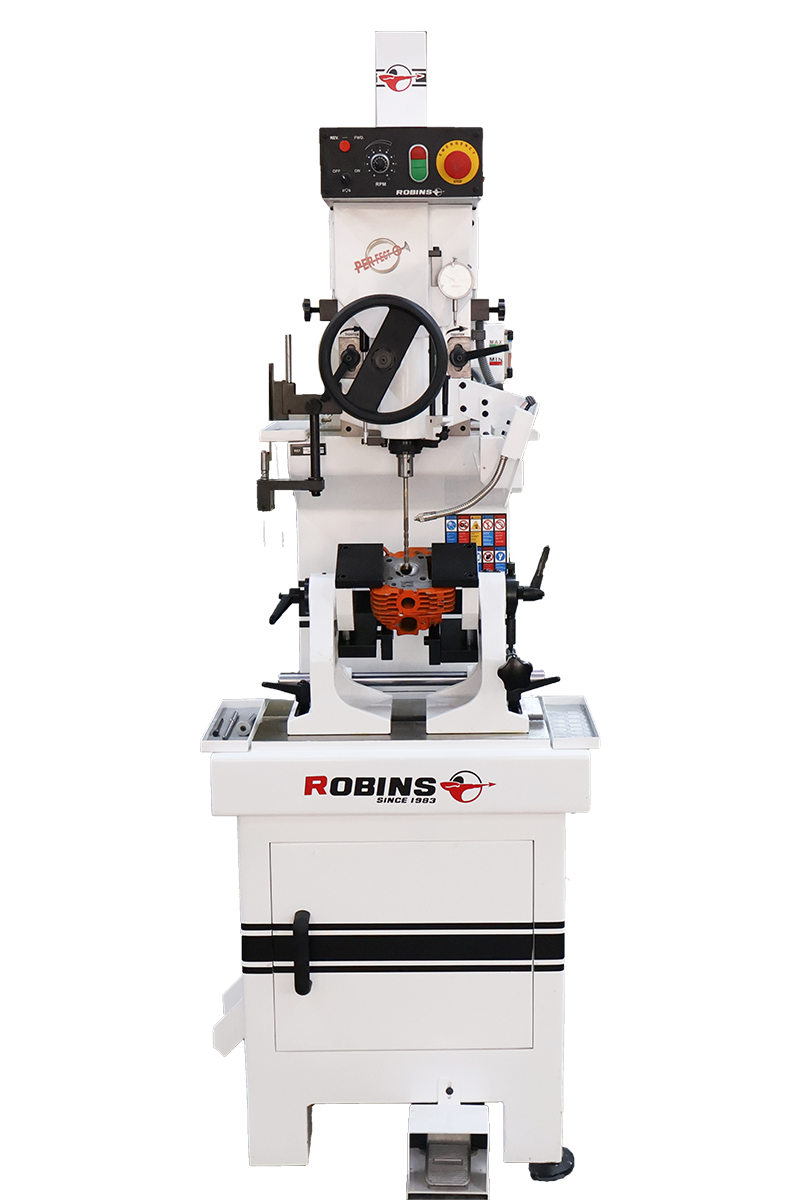

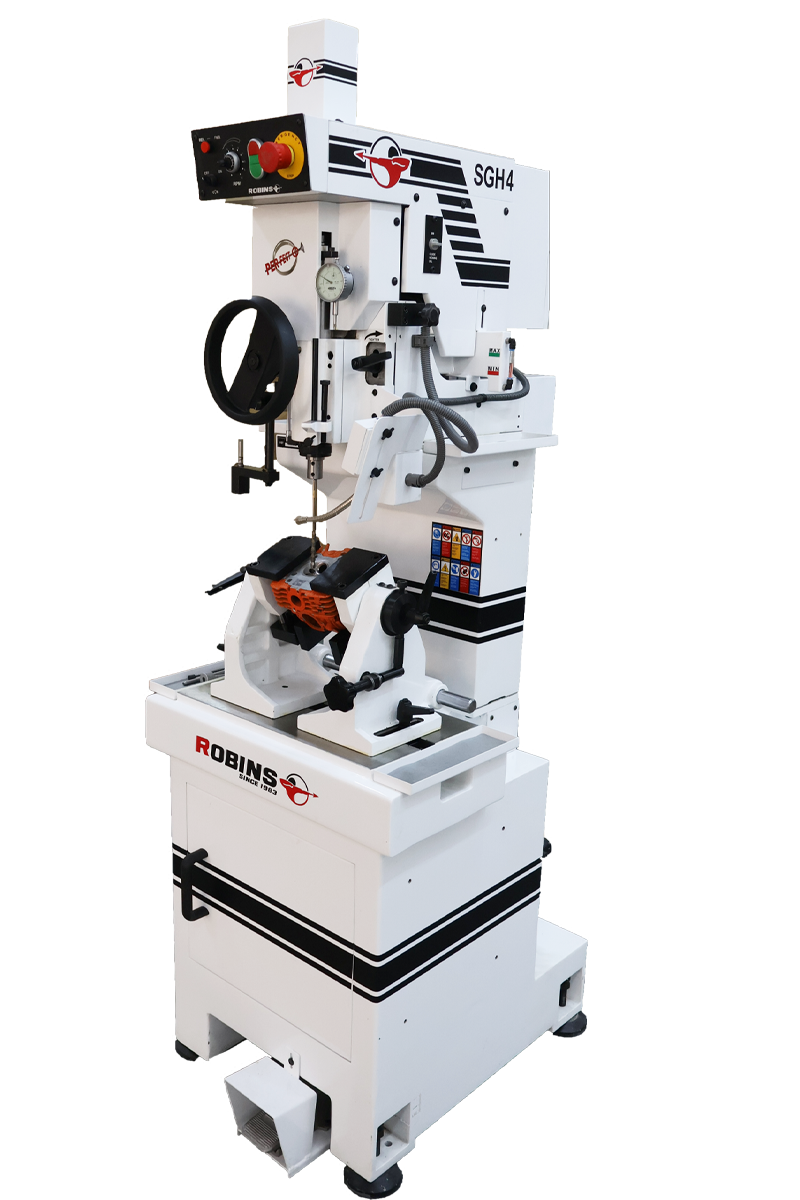

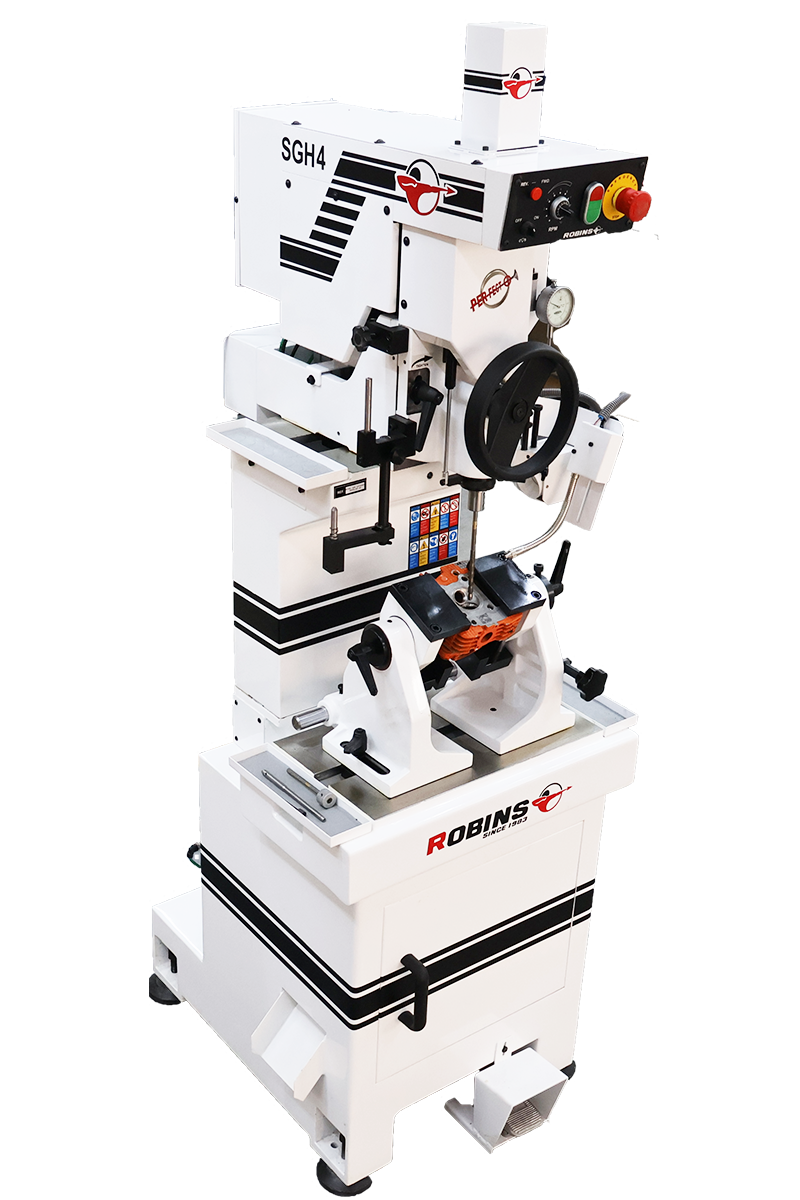

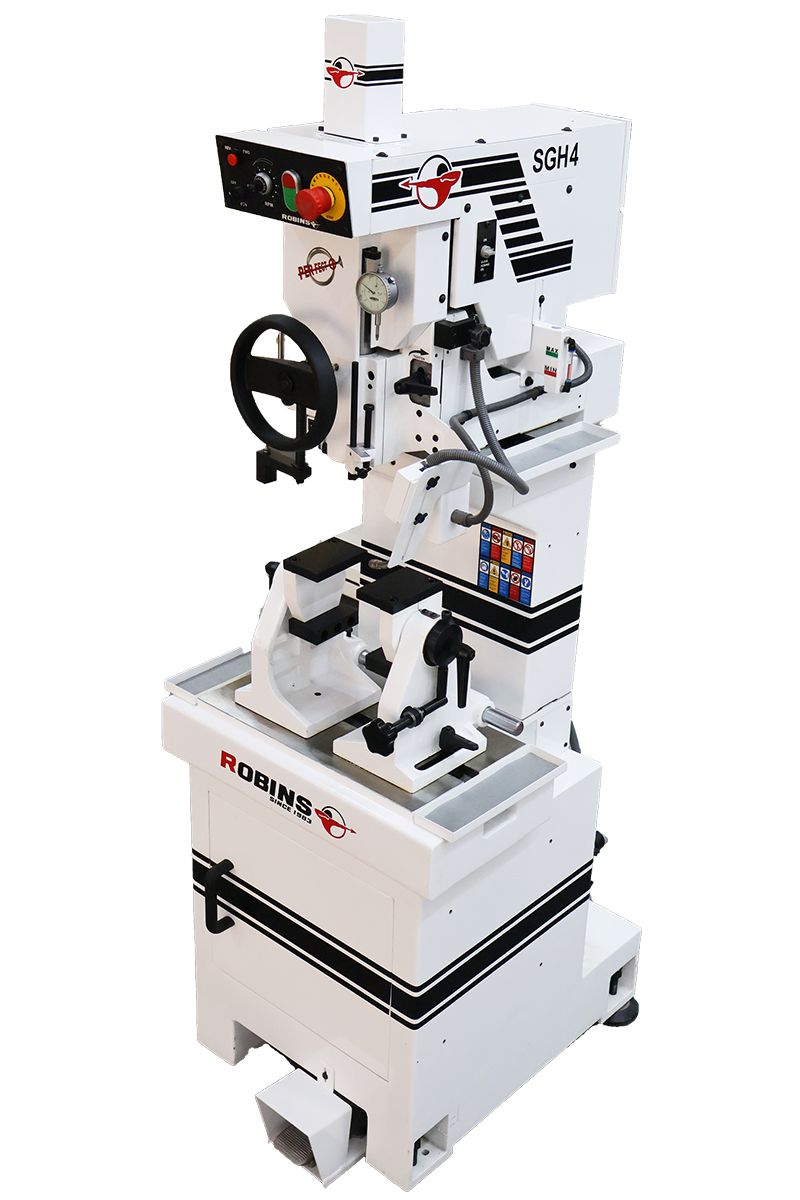

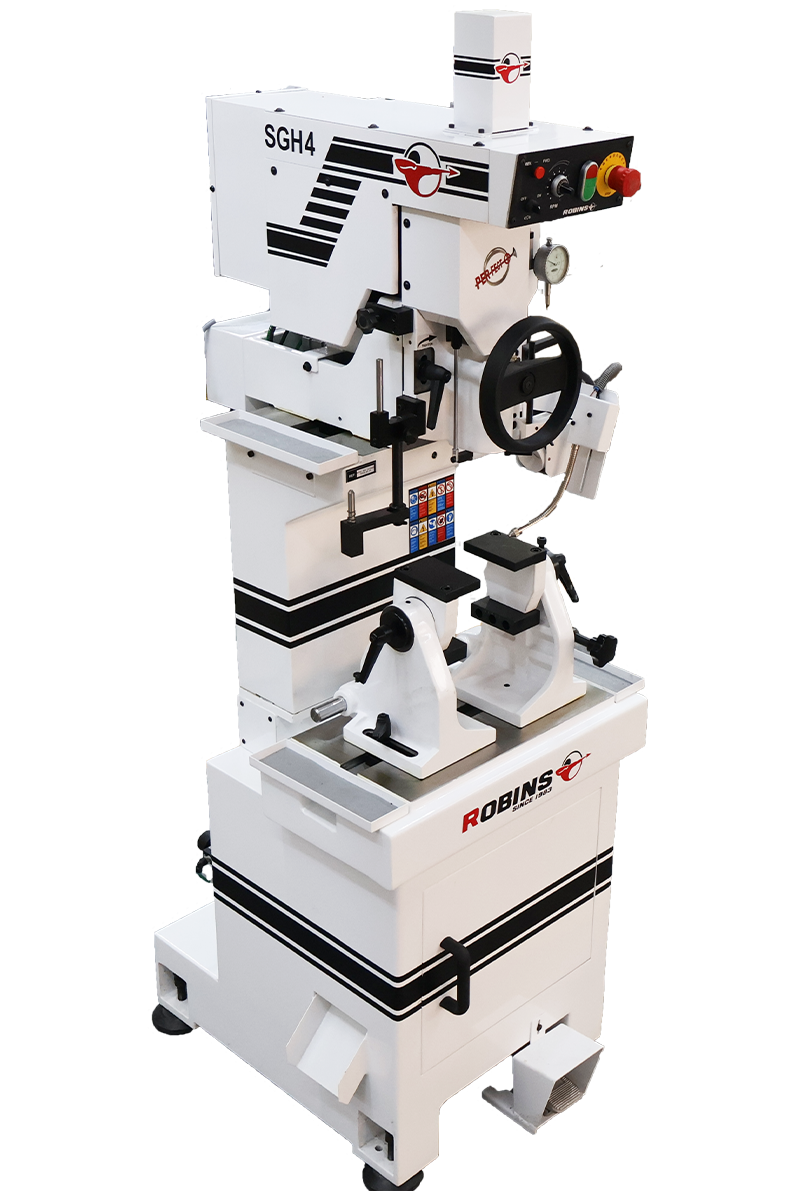

The Robins SGH 4 is a compact, precision valve seat and guide machine designed for accurate machining on small to medium cylinder heads. Its fixed-pilot system provides high rigidity and produces chatter-free valve seats with micron-level concentricity. Robins’ Rubi-Hard premium multi-angle inserts maintain stable, consistent cutting across all seat materials.
The SGH 4 includes an integrated guide-honing process that brings valve guides to final size with correct stem-to-guide clearance. Robins is the only manufacturer that allows guide honing on the same machine before seat cutting, improving guide geometry and ensuring superior seat concentricity.
With adjustable spindle speeds, ±10° spindle tilt, and a wide range of optional fixtures and pilots, the SGH 4 delivers reliable, repeatable performance for any engine rebuilding or performance machine shop.
| Max Cylinder Head Size (in roll fixture) | 10 x 10 x 6 in (254 x 254 x 152 mm) |
| Spindle Speed | 70 – 570 RPM |
| Spindle Stroke | 5.75 in (146 mm) |
| Spindle Tilt | ± 10 degrees |
| Electrical Supply | 220 V / 50–60 Hz / 1 Phase |
| Constant Varying Speed | Yes |
| Micro Fine Feed | No |
| Spring Free Tooling | Yes |
| Threading/Tapping Feature | Yes |
| Net Weight (Approx.) | 882 lbs (400 kg) |
| Shipping Weight (Approx.) | 1103 lbs (500 kg) |
| Compare Model Specs |
Current Model
|
Comparison Model
|
|---|---|---|
| FEATURES |
SGH 4
|
|
| Max Cylinder Head Size (in roll fixture) | 10 x 10 x 6 in (254 x 254 x 152 mm) | 23 x 10 x 6 in (585 x 254 x 152 mm) |
| Spindle Speed | 70 – 570 RPM | 70 – 570 RPM |
| Spindle Stroke | 5.75 in (146 mm) | 5.75 in (146 mm) |
| Spindle Tilt | ± 10 degrees | ± 10 degrees |
| Electrical Supply | 220 V / 50–60 Hz / 1 Phase | 220 V / 50–60 Hz / 1 Phase |
| Constant Varying Speed | Yes | Yes |
| Micro Fine Feed | No | No |
| Spring Free Tooling | Yes | Yes |
| Threading/Tapping Feature | Yes | Yes |
| Net Weight (Approx.) | 882 lbs (400 kg) | 1094 lbs (496 kg) |
| Shipping Weight (Approx.) | 1103 lbs (500 kg) | 1341 lbs (608 kg) |
