Rubi Surf 1.8

US Patented Technologies

Worlwide Distribution

40+

Years Manufacturing

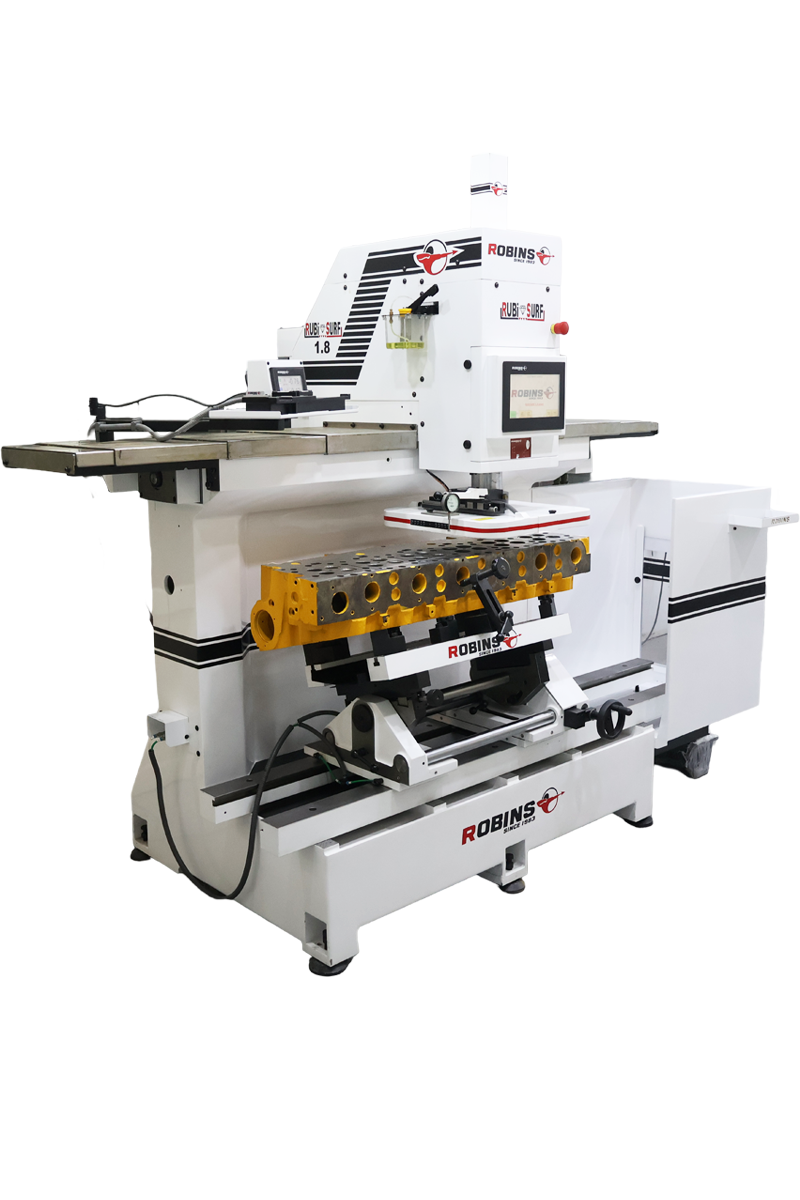

Rubi Surf 1.8

Rubi Surf 1.8

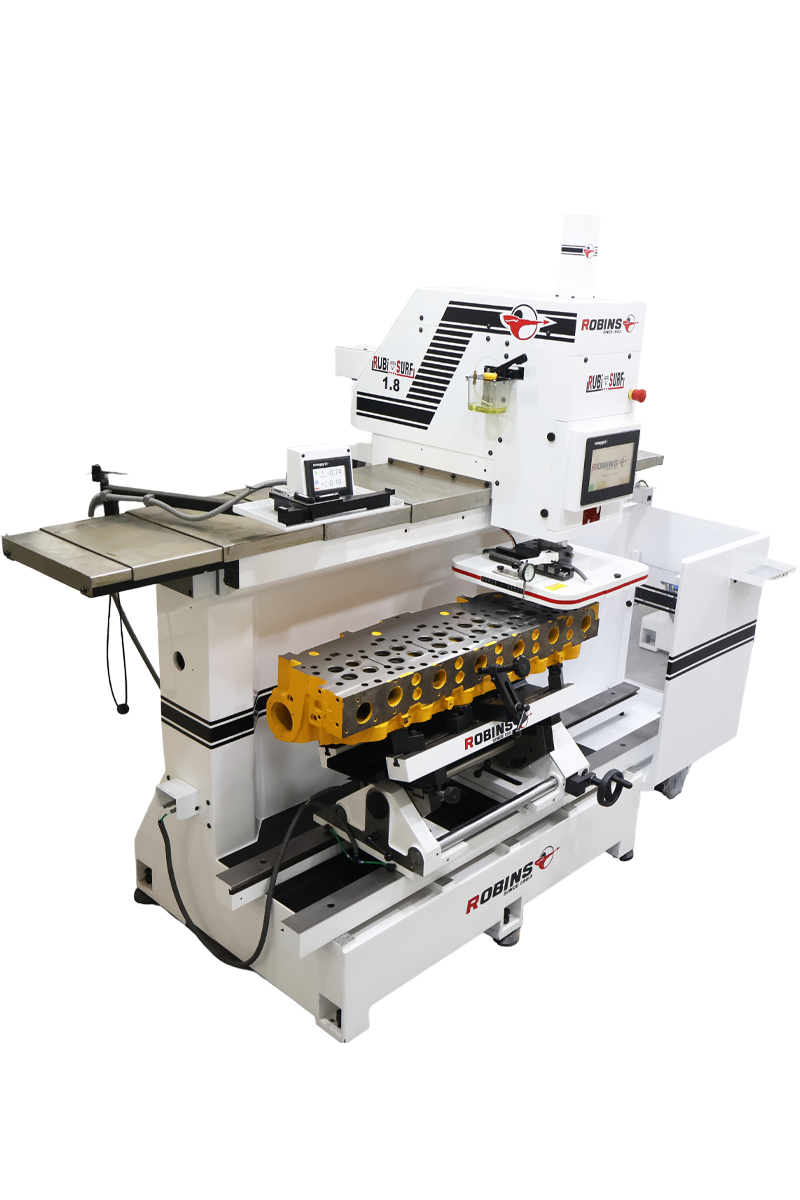

Rubi Surf 1.8 - Image 2
Rubi Surf 1.8 - Image 3

Description

The Robins Rubi-Surf 1.8 is a CNC surfacing machine designed for accurate and repeatable machining of cylinder heads and V-block engines. The RubiSmart touchscreen control system removes all physical switches, making setup faster and more straightforward. A 420 mm cutterhead, CNC-servo travel, and fully adjustable spindle speed and feed rates allow precise control of material removal and surface finish quality, achieving results down to 0.5 Ra μm. The machine’s rigid structure and large workhead capacity ensure stable cutting performance and high productivity for all types of engine rebuilding and machine shop operations.

Find a distributor

Product Details

  • Specifications
  • Features
  • Working Accuracy
  • Documents
  • Videos

Product Details

  • Specifications
  • Features
  • Working Accuracy
  • Documents
  • Videos

Specifications

X-Axis Workhead Travel 49.5 in (1,257 mm)
Max Cylinder Head Size (in roll fixture) 41 in (865 mm)
Cutter Head Diameter 16.5 in (419 mm)
Spindle Speed 200 – 1,200 RPM (Variable, CNC AC Servo)
Workhead Feed Rate 12.7 – 635 mm/min (Infinitely Variable, CNC AC Servo)
Surface Finish (Ra) As low as 0.5 µm Ra (≈ 20 µin)
X-Axis Slideways Low-friction Turcite slideways
Operator Panel RubiSurf Smart Series control panel
Lubrication System Centralized automatic lubrication
Net Weight (Approx.) 4585 lbs (2080 kg)
Shipping Weight (Approx.) 5247 lbs (2380 kg)

Features

Control System

  • CNC control using RubiSmart touchscreen software
  • 10″ (250 mm) computerized touchscreen interface
  • Simple programming; no CNC background required
  • Supports inch and metric units
  • Programmable single-pass and multi-pass automatic cycles with preset depths
  • Rapid touch-off function to reduce cycle time
  • Cutterhead returns automatically to preset vertical zero after cycle completion

Axis & Motion Control

  • Vertical feed driven by AC servo motor, infinitely variable
  • Maximum workhead travel: 49.5 in (1,257 mm)
  • Vertical and spindle load monitoring with fast overload shutdown
  • Position display resolution: 0.001″ (0.02 mm)
  • Electronic handwheel increments:
    • Fine: 0.001″ (0.02 mm) per click
    • Rapid: 0.005″ (0.10 mm) per click

Spindle & Feed

  • Spindle driven by AC servo motor
  • Variable spindle speed up to 1200 rpm
  • Infinitely variable travel feed rate: 125–500 mm/min
  • Feed rate adjustable on-screen during automatic cycles

Machine Structure

  • Slideways coated with Turcite for low friction and long service life
  • Multi-piece metal slideway cover to protect ballscrew and guideways
  • Central lubrication system included
  • Cutterhead guard included
  • Large base for easy mounting of fixtures

Working Accuracy

  • As low as 0.5 µm Ra (≈ 20 µin)

Documents

Rubi Surf 1.8 Brochure

Videos

Compare
Model
Specs
Current Model
Comparison Model
FEATURES
Rubi Surf 1.8
X-Axis Workhead Travel 49.5 in (1,257 mm) 41.5 in (1,054 mm)
Max Cylinder Head Size (in roll fixture) 41 in (865 mm) 35 in (889 mm)
Cutter Head Diameter 16.5 in (419 mm) 14.0 in (356 mm)
Spindle Speed 200 – 1,200 RPM (Variable, CNC AC Servo) 200 – 1,200 RPM (Variable, CNC AC Servo)
Workhead Feed Rate 12.7 – 635 mm/min (Infinitely Variable, CNC AC Servo) 12.70 – 635 mm/min (Infinitely Variable, CNC AC Servo)
Surface Finish (Ra) As low as 0.5 µm Ra (≈ 20 µin) As low as 0.5 µm Ra (≈ 20 µin)
X-Axis Slideways Low-friction Turcite slideways Low-friction Turcite slideways
Operator Panel RubiSurf Smart Series control panel RubiSurf Smart Series control panel
Lubrication System Centralized automatic lubrication Centralized automatic lubrication
Net Weight (Approx.) 4585 lbs (2080 kg) 3352 lbs (1520 kg)
Shipping Weight (Approx.) 5247 lbs (2380 kg) 3969 lbs (1800 kg)
