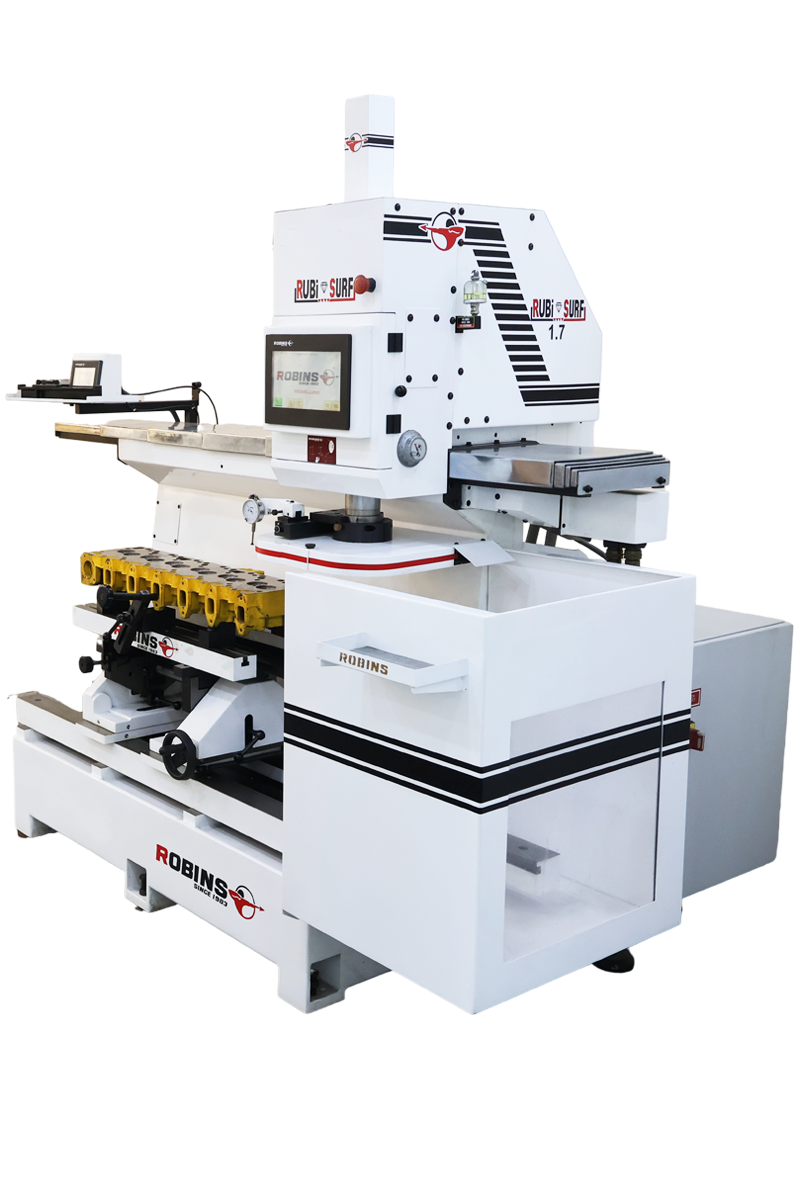

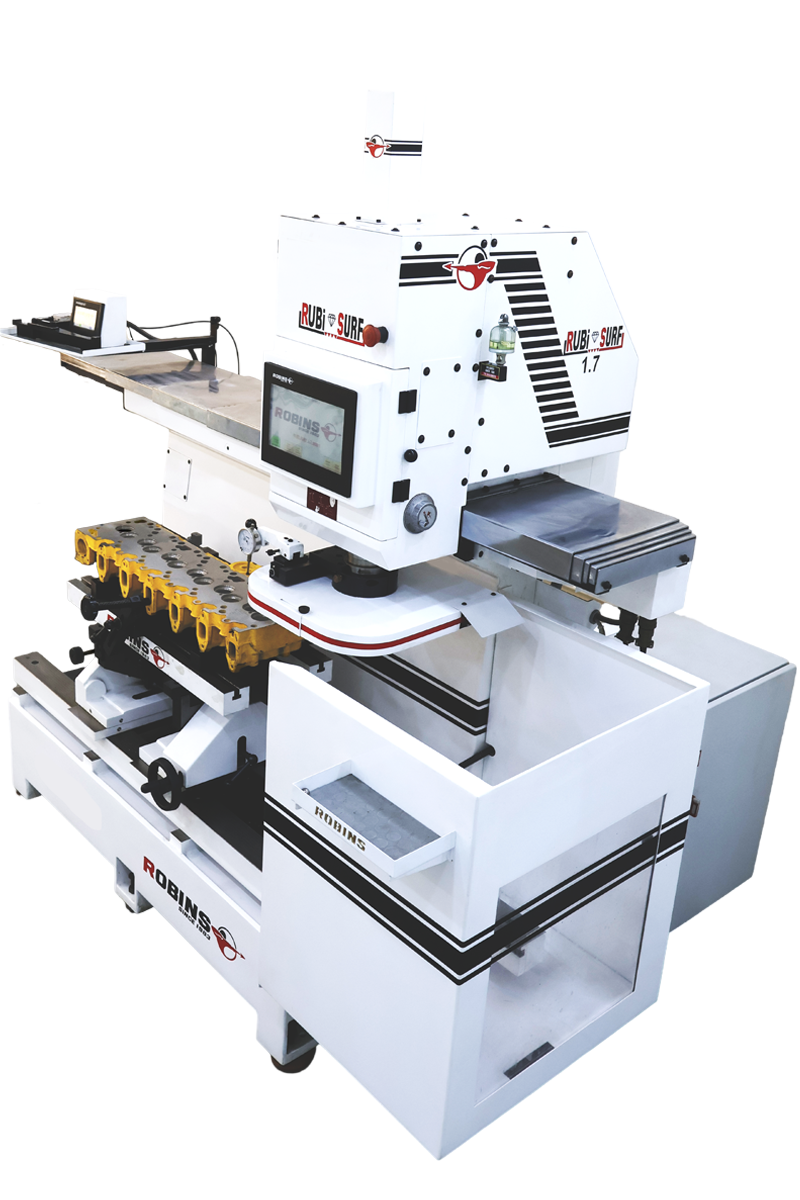

The Robins Rubi Surf 1.7 is a precision resurfacing machine built for cylinder heads and engine blocks from automotive, diesel, and industrial engines. Its rigid cast-iron construction and ball-screw table feed ensure stability and perfectly flat sealing surfaces on both aluminum and cast iron.
Powered by Robins’ proprietary SMART operator software, designed for the RubiSurf Series, the RS 1.7 delivers 30% to 50% higher productivity with superior surface finish and flatness. All traditional switches are eliminated, with key functions digitally integrated, including:
The inverter-driven spindle motor supports CBN, PCD, and carbide tooling for MLS-quality finishes. With CNC-style automation, faster setup, and consistent precision, the Robins RS 1.7 provides engine rebuilders a high-performance alternative to traditional resurfacing machines in this class.
| X-Axis Workhead Travel | 41.5 in (1,054 mm) |
| Max Cylinder Head Size (in roll fixture) | 35 in (889 mm) |
| Cutter Head Diameter | 14.0 in (356 mm) |
| Spindle Speed | 200 – 1,200 RPM (Variable, CNC AC Servo) |
| Workhead Feed Rate | 12.70 – 635 mm/min (Infinitely Variable, CNC AC Servo) |
| Surface Finish (Ra) | As low as 0.5 µm Ra (≈ 20 µin) |
| X-Axis Slideways | Low-friction Turcite slideways |
| Operator Panel | RubiSurf Smart Series control panel |
| Lubrication System | Centralized automatic lubrication |
| Net Weight (Approx.) | 3352 lbs (1520 kg) |
| Shipping Weight (Approx.) | 3969 lbs (1800 kg) |
Control System
Axis & Motion Control
Spindle & Feed
Machine Structure
| Compare Model Specs |
Current Model
|
Comparison Model
|
|---|---|---|
| FEATURES |
Rubi Surf 1.7
|
|
| X-Axis Workhead Travel | 41.5 in (1,054 mm) | 49.5 in (1,257 mm) |
| Max Cylinder Head Size (in roll fixture) | 35 in (889 mm) | 41 in (865 mm) |
| Cutter Head Diameter | 14.0 in (356 mm) | 16.5 in (419 mm) |
| Spindle Speed | 200 – 1,200 RPM (Variable, CNC AC Servo) | 200 – 1,200 RPM (Variable, CNC AC Servo) |
| Workhead Feed Rate | 12.70 – 635 mm/min (Infinitely Variable, CNC AC Servo) | 12.7 – 635 mm/min (Infinitely Variable, CNC AC Servo) |
| Surface Finish (Ra) | As low as 0.5 µm Ra (≈ 20 µin) | As low as 0.5 µm Ra (≈ 20 µin) |
| X-Axis Slideways | Low-friction Turcite slideways | Low-friction Turcite slideways |
| Operator Panel | RubiSurf Smart Series control panel | RubiSurf Smart Series control panel |
| Lubrication System | Centralized automatic lubrication | Centralized automatic lubrication |
| Net Weight (Approx.) | 3352 lbs (1520 kg) | 4585 lbs (2080 kg) |
| Shipping Weight (Approx.) | 3969 lbs (1800 kg) | 5247 lbs (2380 kg) |
